Make:

Winget Syncro

Type:

F13 Rod Breakdown Machine

Description:

This machine can be supplied with 5, 7, 9, 11 or 13 die positions, dependent on required duty. The 13 die version has 4 pullblock shafts, each carrying a 3 step pullblock.

The machine is normally fitted with a four speed main gearbox and double finishing capstan providing eight finishing speeds. For 12.7mm diameter E.C. aluminium 5, 7, 9 or 11 die machines must be used.

Specification:

Maximum Entry

9.5mm soft copper or E.C. aluminium

Finish Diameter

1.0mm to 5.6mm diameter

Maximum Finishing Speed

30 m.p.s.

Pullblock Diameters

483, 315 and 204mm

Capstan Diameters

711 and 464mm

Elongation Per Die

26%

Maximum Motor

250 h.p.

PDF logo View original F13 spec sheet

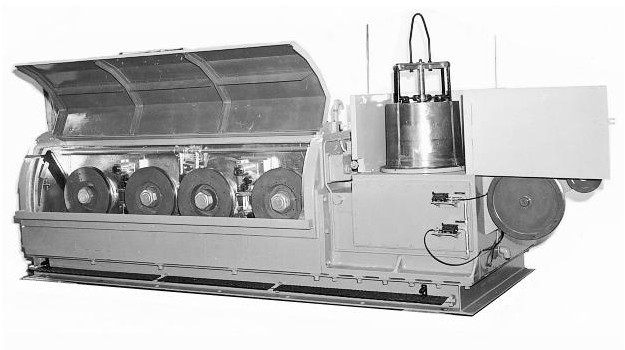

Picture: F13 Rod Breakdown Machine
