Make:

Winget Syncro

Type:

C13 Intermediate Wire Drawing Machine

Description:

This machine can be supplied with 7, 9, or 13 dies. In the 13 die version, 4 pullblock shafts are fitted, each having a 3 step pullblock assembly with replaceable tyres or rings. A built-in two speed gearbox and a double finishing capstan provide 4 finishing speeds.

Drafting is at a constant 26%.

Specification:

Maximum Entry

4.12mm soft copper

Finish Diameter

0.40mm to 1.63mm diameter

Maximum Finishing Speed

35.5 m.p.s.

Maximum Motor

100 h.p. copper;

60 h.p. aluminium

PDF logo View original C13 spec sheet

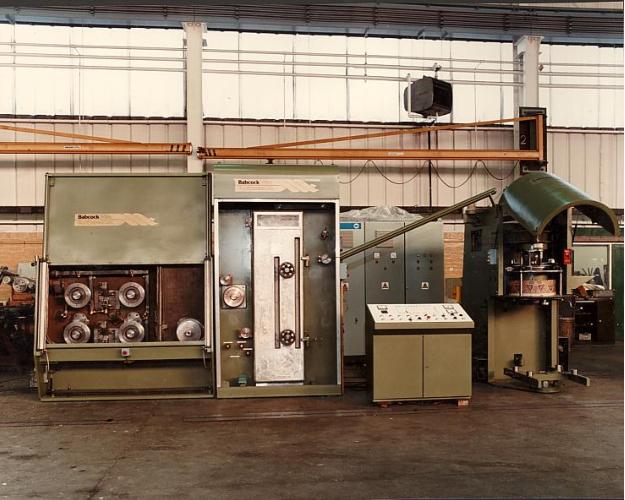

Picture: C13 Intermediate Wire Drawing Machine with C3 Annealer and SGD1 Coiler
